                Fuel Saving
 Control Fuel Consumption

Fuel monitoring system. Fuel saving system



"GuardMagic fuel saving system" is repaid  in 3-6 weeks, primarily due to fuel theft (drain) and fuel fraud decrease. In practice, this means ...





SOLUTION - MULTIFUNCTION "GPS-GSM/GPRS"  MONITORING



      Vehicle Multifunction GPS-GPRS Monitoring / GuardMagic VB3 in system

GuardMagic VB3 compact vehicle GPS/ GSM-GPRS module with driver identification function, fuel monitoring function and logical inputs, for remote supervision of mobile objects movement (vehicle, special machinery etc.) and vehicle status.
Supports up to THREE regular fuel tanks (fuel level sensors with digital communication bus).

GuardMagic VB3 is a base GPS/ GSM-GPRS vehicle module.
(GuardMagic VB3 modules support universal communication protocol that's allow to have different GuardMagic modules with different functionality in one system).

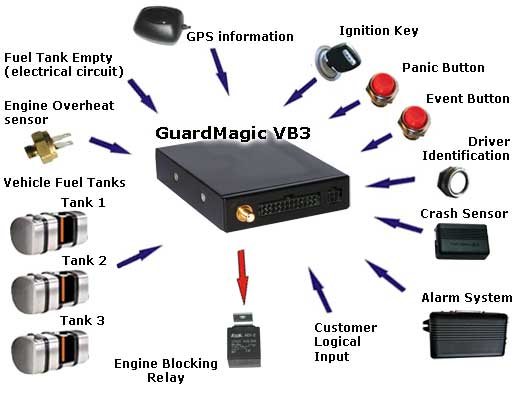

GuardMagic VB3connection:
  • Main power supply (DC power 12/24 V);
  • Reserve external battery (12V);
  • GPS antenna-receiver (from complete set);
  • Ignition circuit;
  • Up to THREE fuel level sensors with digital industrial communication bus (EIA-485);
  • Driver identification reader;
  • “PANIC” (SOS) Button;
  • “EVENT” Button;
  • Car (Vehicle) alarm system;
  • “Engine Overheat” circuit (overheat sensor);
  • Crash sensor (one or three levels);
  • Fuel Tank empty circuit;
  • Customer logical sensor;
  • Engine start blocking relay.

GuardMagic VB3 provides to immediate transmitting or storing in internal non-volatile memory and posterior transmitting the following information:
  • GPS track of transport (geographical coordinates);
  • GPS parameters of movement (speed, time);
  • Fuel level in fuel tank (Fuel history up to THREE tanks)*;
  • Active driver identification number (Driver ID)*;
  • Panic signal;
  • Engine overheat*;
  • Road accident*;
  • Car Alarm activation*;
  • Attempt to theft;
  • Engine status;
  • Fuel Tank Empty;
  • Status of external logical circuits (logical input, “Event Button”).
