Fuel monitoring system. Fuel saving system



"GuardMagic fuel saving system" is repaid  in 3-6 weeks, primarily due to fuel theft (drain) and fuel fraud decrease. In practice, this means ...





SOLUTION - MULTIFUNCTION "GPS-GSM/GPRS"  MONITORING



      Vehicle Multifunction GPS-GPRS Monitoring / GuardMagic VB2 in system

 GuardMagic VB2 compact vehicle GPS/ GSM-GPRS module with logical inputs, driver identification and fuel monitoring function for remote supervision of mobile objects movement (vehicle, special machinery etc.) and vehicle status.

(GuardMagic VB2 modules support universal communication protocol that's allow to have different GuardMagic modules with different functionality in one system).

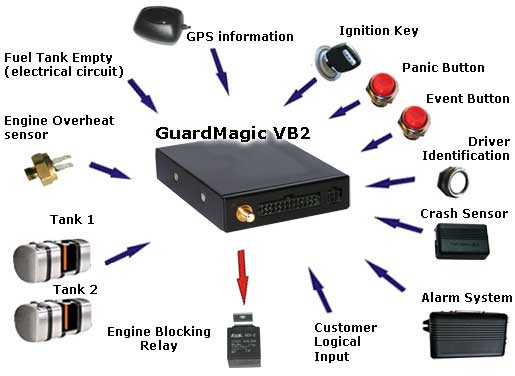

GuardMagic VB2 connection:

  • Main power supply (DC power 12/24 V);
  • Reserve external battery (12V);
  • GPS antenna-receiver (from complete set);
  • Ignition circuit;
  • Up to TWO analog fuel level sensors;
  • Driver identification reader;
  • “PANIC” (SOS) Button;
  • “EVENT” Button;
  • Car (Vehicle) alarm system;
  • “Engine Overheat” circuit (overheat sensor);
  • Crash sensor (one or three levels);
  • Fuel Tank empty circuit;
  • Customer logical sensor;
  • Engine start blocking relay.
GuardMagic VB2 provides to immediate transmitting or storing in internal non-volatile memory and posterior transmitting the following information:
  • GPS track of transport (geographical coordinates);
  • GPS parameters of movement (speed, time);
  • Fuel level in fuel tank (Fuel history up to two tanks)*;
  • Active driver identification number (Driver ID)*;
  • Panic signal;
  • Engine overheat*;
  • Road accident*;
  • Car Alarm activation*;
  • Attempt to theft;
  • Engine status;
  • Fuel Tank Empty;
  • Status of external logical circuits (logical input, “Event Button”).
